AMCs Primary Resources
I work on all these aircrafts and without these aircrafts the Air Mobility Command wouldn't be able to complete the mission.
|
|
|

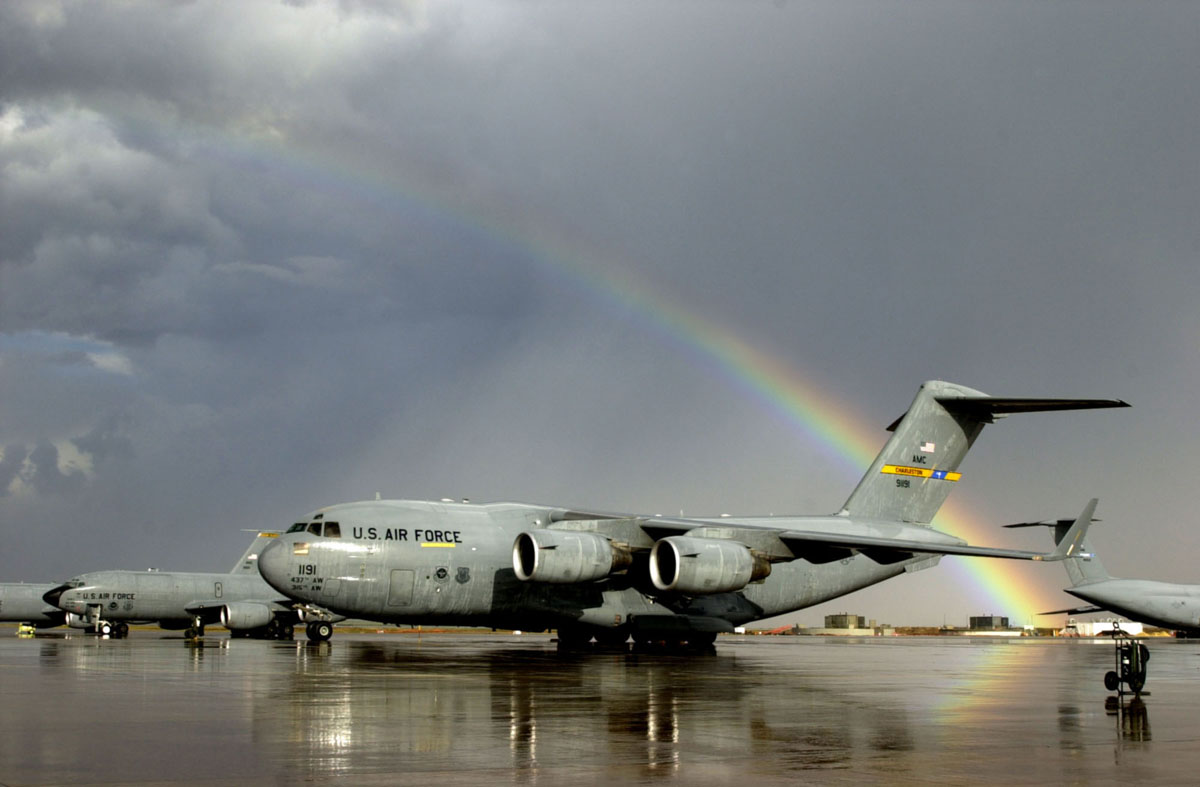

C-17 Globemaster III
Primary Function: Cargo and troop transport
Prime Contractor: Boeing Company
Power Plant: Four Pratt & Whitney F117-PW-100 turbofan engines
Thrust: 40,440 pounds, each engine
Wingspan: 169 feet 10 inches (to winglet tips) (51.76 meters)
Length: 174 feet (53 meters)
Height: 55 feet 1 inch (16.79 meters)
Cargo Compartment: length, 88 feet (26.82 meters); width, 18 feet (5.48 meters); height, 12 feet 4 inches (3.76 meters)
Speed: 450 knots at 28,000 feet (8,534 meters) (Mach .74)
Service Ceiling: 45,000 feet at cruising speed (13,716 meters)
Range: Global with in-flight refueling
Crew: Three (two pilots and one loadmaster)
Maximum Peacetime Takeoff Weight: 585,000 pounds (265,352 kilograms)
Load: 102 troops/paratroops; 48 litter and 54 ambulatory patients and attendants; 170,900 pounds (77,519 kilograms) of cargo (18 pallet positions)
Unit Cost: million (FY96 constant dollars)
Date Deployed: June 1993
Inventory: unavailable
The design of the aircraft lets it operate through small, austere airfields. The C-17 can take off and land on runways as short as 3,000 feet (914 meters) and as narrow as 90 feet (27.4 meters) wide. Even on such narrow runways, the C-17 can turn around using a three-point star turn and its backing capability.
|

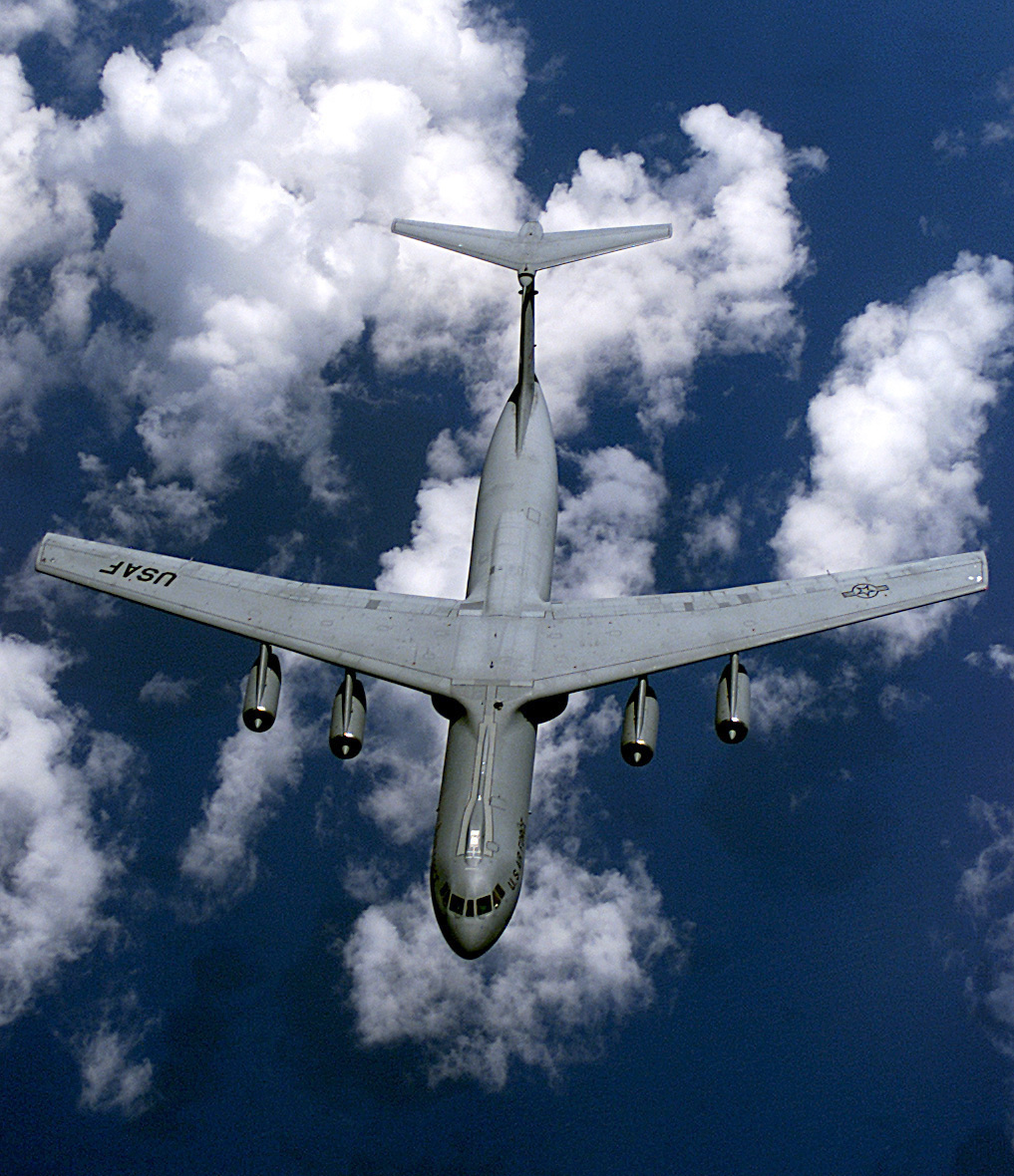

C-141 Starlifter
Primary Function: Cargo and troop transport
Contractor: Lockheed-Georgia Company
Power Plant: Four Pratt & Whitney TF33-P-7 turbofan engines
Thrust: 20,250 pounds, each engine
Wingspan: 160 feet (48.7 meters)
Length: 168 feet, 4 inches (51 meters)
Height: 39 feet, 3 inches (11.9 meters)
Cargo Compartment: Height, 9 feet 1 inch (2.77 meters); length, 93 feet 4 inches (28.45 meters); width, 10 feet 3 inches (3.12 meters)
Cargo Door: width, 10.25 feet (31.24 meters); height, 9.08 feet (27.6 meters)
Speed: 500 mph (Mach 0.66) at 25,000 feet
Ceiling: 41,000 feet (12,496 meters) at cruising speed
Range: Unlimited with in-flight refueling
Maximum Takeoff Weight: 323,100 lbs (146,863 kilograms)
Load: Either 200 troops, 155 paratroops, 103 litters and 14 seats, or 68,725 lbs (31,239 kilograms) of cargo
Unit Cost: .9 million (FY96 constant dollars)
Crew: Five: two pilots, two flight engineers and one loadmaster (one navigator added for airdrops). Aeromedical teams of two flight nurses and three medical technicians each are added for aeromedical evacuation missions.
Date Deployed: C-141A: May 1964; C-141B: December 1979.
Inventory: Unavailable
The C-141, with its changeable cargo compartment, can transition from rollers on the floor for palletized cargo to a smooth floor for wheeled vehicles to aft facing seats or sidewall canvas seats for passengers, quickly and easily, to handle over 30 different missions.
|
|
|
|

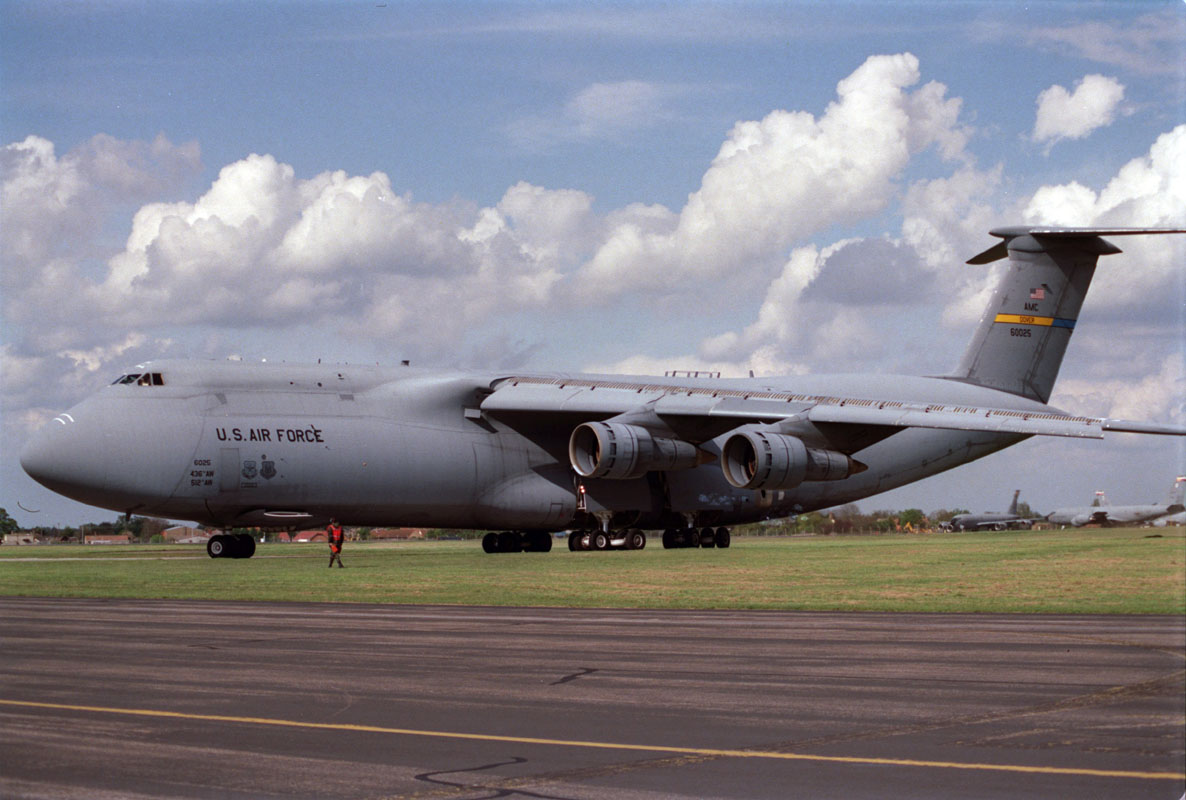

C-5 Galaxy
Primary function: Outsized cargo transport
Contractor: Lockheed Georgia Co.
Power Plant: Four General Electric TF-39 engines
Thrust: 41,000 pounds, each engine
Wingspan: 222.9 feet (67.93 meters)
Length: 247.1 feet (75.3 meters)
Height: 65.1 feet (19.84 meters) (at tail)
Cargo Compartment: height, 13.5 feet (4.11 meters); width, 19 feet (5.79 meters); length, 143 feet, 9 inches (43.8 meters)
Takeoff/Landing Distances: 8,300 feet (2,530 meters) takeoff fully loaded; and 4,900 feet (1,493 meters) land fully loaded
Pallet Positions: 36
Speed: 518 miles per hour (.68 Mach)
Range: 6,320 nautical miles (empty)
Crew: 7 (pilot, co-pilot, two flight engineers and three loadmasters)
Unit Cost: C-5B, .2 million (FY96 constant dollars)
Date Deployed: June 1970 (operational)
www.usmilitary.about.com/library/milinfo/affacts/blc-5galaxy.html
http://usmilitary.about.com/library/milinfo/affacts/blc-5galaxy.html
|
C-5 Galaxy

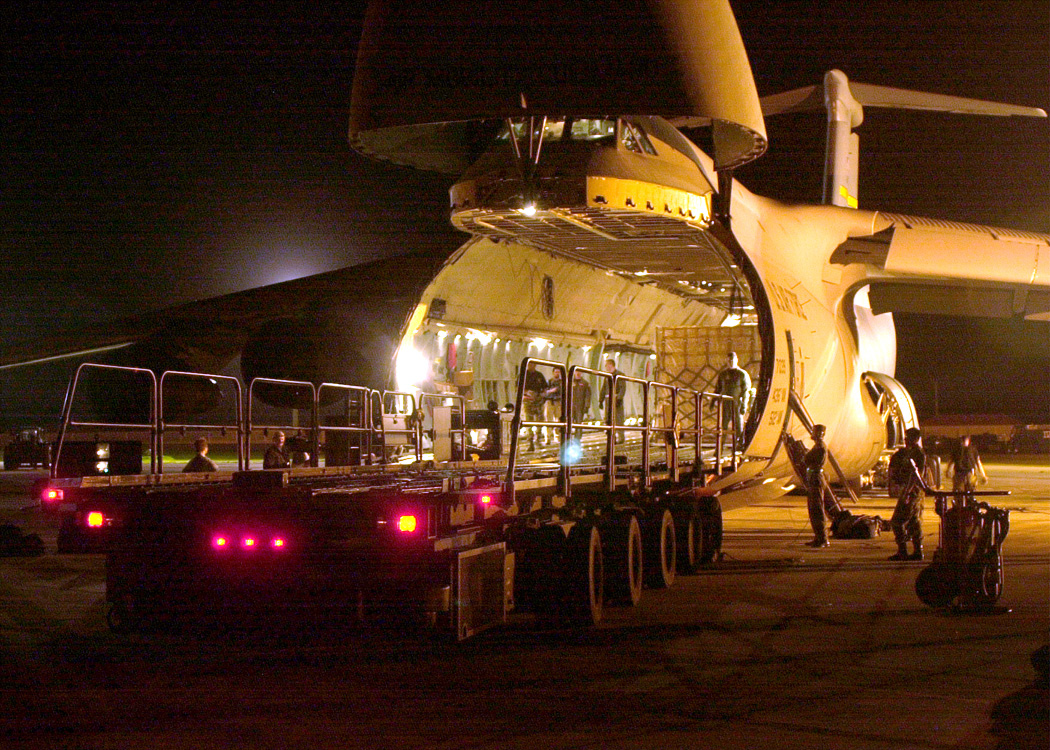

The C-5 is one of the largest aircraft in the world. It can carry outsized cargo intercontinental ranges and can take off or land in relatively short distances. Ground crews can load and off load the C-5 simultaneously at the front and rear cargo openings since the nose and aft doors open the full width and height of the cargo compartment. It can also "kneel down" to facilitate loading directly from truck bed levels. Other features of the C-5 are:
High flotation landing gear with 28 wheels sharing the weight.
Full width drive-on ramps at each end for loading double rows of vehicles.
An automatic trouble-shooting system that records and analyzes information and detects malfunctions in more than 800 test points.
Able to take off fully loaded within 8,300 feet (2,530 meters) and land within 4,900 feet (1,493 meters).
|
|
|
|

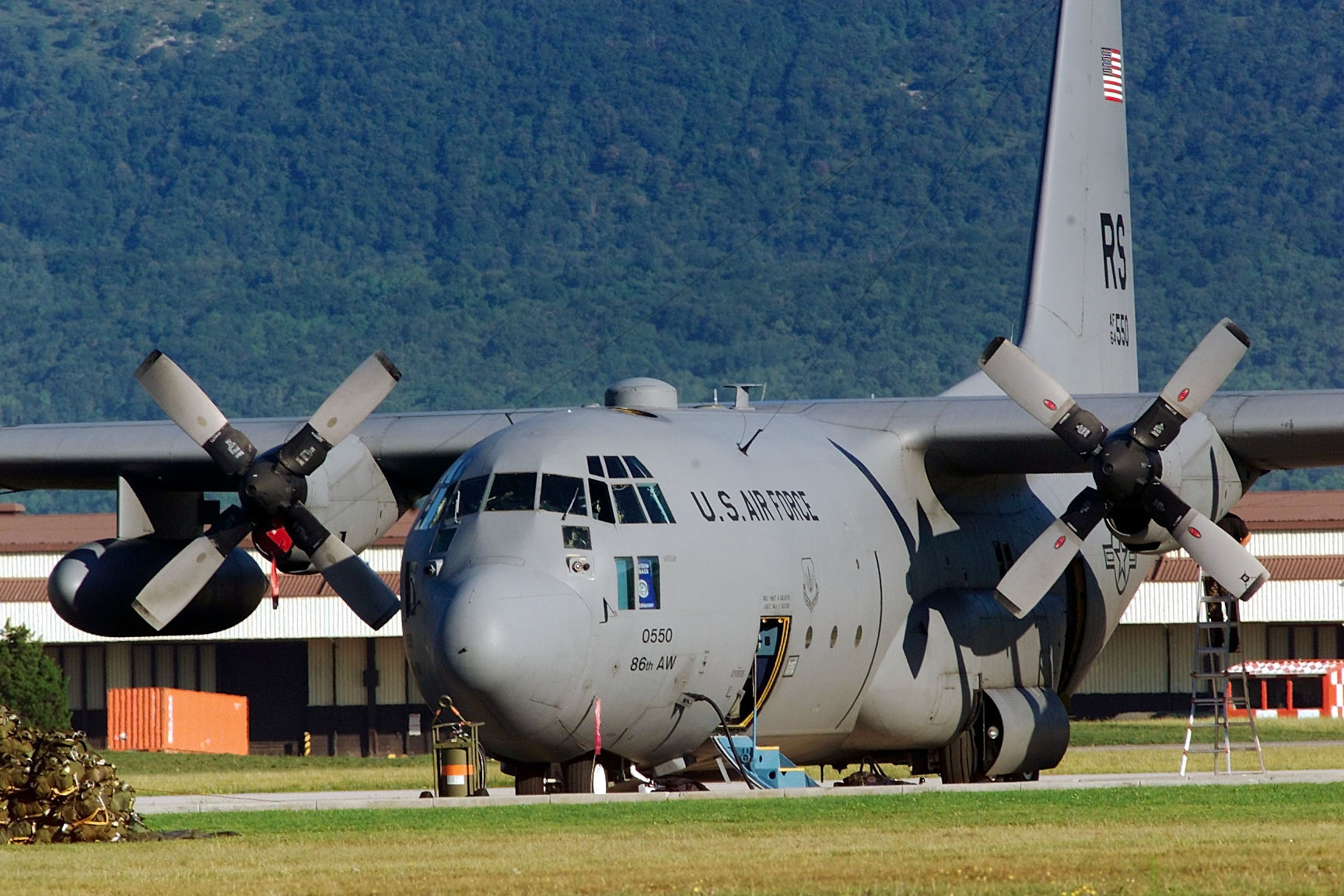

C-130 Hercules
Primary Function: Tactical and intratheater airlift
Contractor: Lockheed Martin Aeronautical Systems Company
Power Plant: Four Allison T56-A-15 turboprops; 4,300 horsepower, each engine
Length: 97 feet, 9 inches (29.3 meters)
Height: 38 feet, 3 inches (11.4 meters)
Wingspan: 132 feet, 7 inches (39.7 meters)
Cargo Compartment: Length, 41 feet (12.5 meters); width, 108 inches (2.74 meters); height, 9 feet (2.74 meters). Rear ramp (one pallet position); length, 88 inches (2.23 meters); width, 108 inches (2.74 meters); height, 76 inches (1.93 meters)
Speed: 374 mph (Mach 0.57) at 20,000 feet (6,060 meters)
Ceiling: 33,000 feet (10,000 meters) with 45,000 pounds (17,716 kilograms) payload
Maximum Takeoff Weight: 155,000 pounds (69,750 kilograms)
Range: 2,356 miles (2,049 nautical miles) with maximum payload; 2,500 miles (2,174 nautical miles) with 25,000 pounds (11,250 kilograms) cargo; 5,200 miles (4,522 nautical miles) with no cargo
Crew: Five (two pilots, a navigator, flight engineer and loadmaster); up to 92 troops or 64 paratroops or 74 litter patients or six standard freight pallets with a maximum of 45,000 pounds of cargo.
Unit Cost: .1 million (1996 dollars)
Date Deployed: April 1955
Inventory: Active force, 93; Air Reserve component (Reserve and ANG), 296
The C-130 Hercules primarily performs the tactical portion of the airlift mission. The aircraft is capable of operating from rough, dirt strips and is the prime transport for airdropping troops and equipment into hostile areas. C-130s operate throughout the U.S. Air Force, serving with Air Mobility Command (stateside based), theater commands, Air National Guard and the Air Force Reserve Command, fulfilling a wide range of operational missions in both peace and war situations. Basic and specialized versions of the aircraft airframe perform a diverse number of roles, including airlift support, Arctic ice resupply, aeromedical missions, aerial spray missions, fire-fighting duties for the U.S. Forest Service and natural disaster relief missions.
|

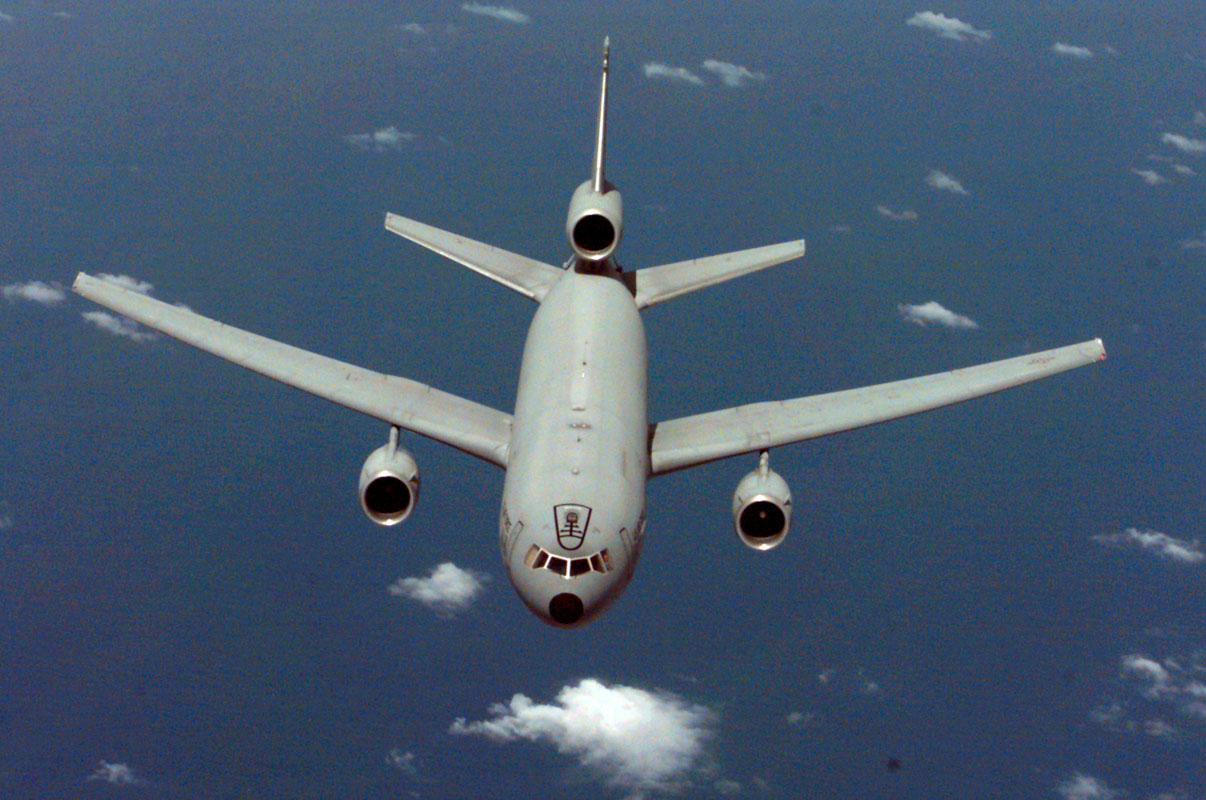

KC-10 Extender
Primary Function: Aerial tanker and transport
Prime Contractor: Douglas Aircraft Co., division of The Boeing Company
Power Plant: Three General Electric CF6-50C2 turbofans
Thrust: 52,500 pounds (23,625 kilograms), each engine
Length: 181 feet, 7 inches (54.4 meters)
Height: 58 feet, 1 inch (17.4 meters)
Wingspan: 165 feet, 4.5 inches (50 meters)
Speed: 619 mph (Mach 0.825)
Ceiling: 42,000 feet (12,727 meters)
Maximum Takeoff Weight: 590,000 pounds (265,500 kilograms)
Range: 4,400 miles (3,800 nautical miles) with cargo; 11,500 miles (10,000 nautical miles) without cargo
Maximum Cargo Payload: 170,000 pounds (76,560 kilograms)
Pallet Positions: 27
Maximum Fuel Load: 356,000 pounds (160,200 kilograms)
Crew: Four (aircraft commander, pilot, flight engineer and boom operator)
Unit Cost: 86.8 million (FY 96 constant dollars)
Date Deployed: March 1981
Inventory: Active force, 59; ANG, 0; Reserve, 0
|
|
|
|

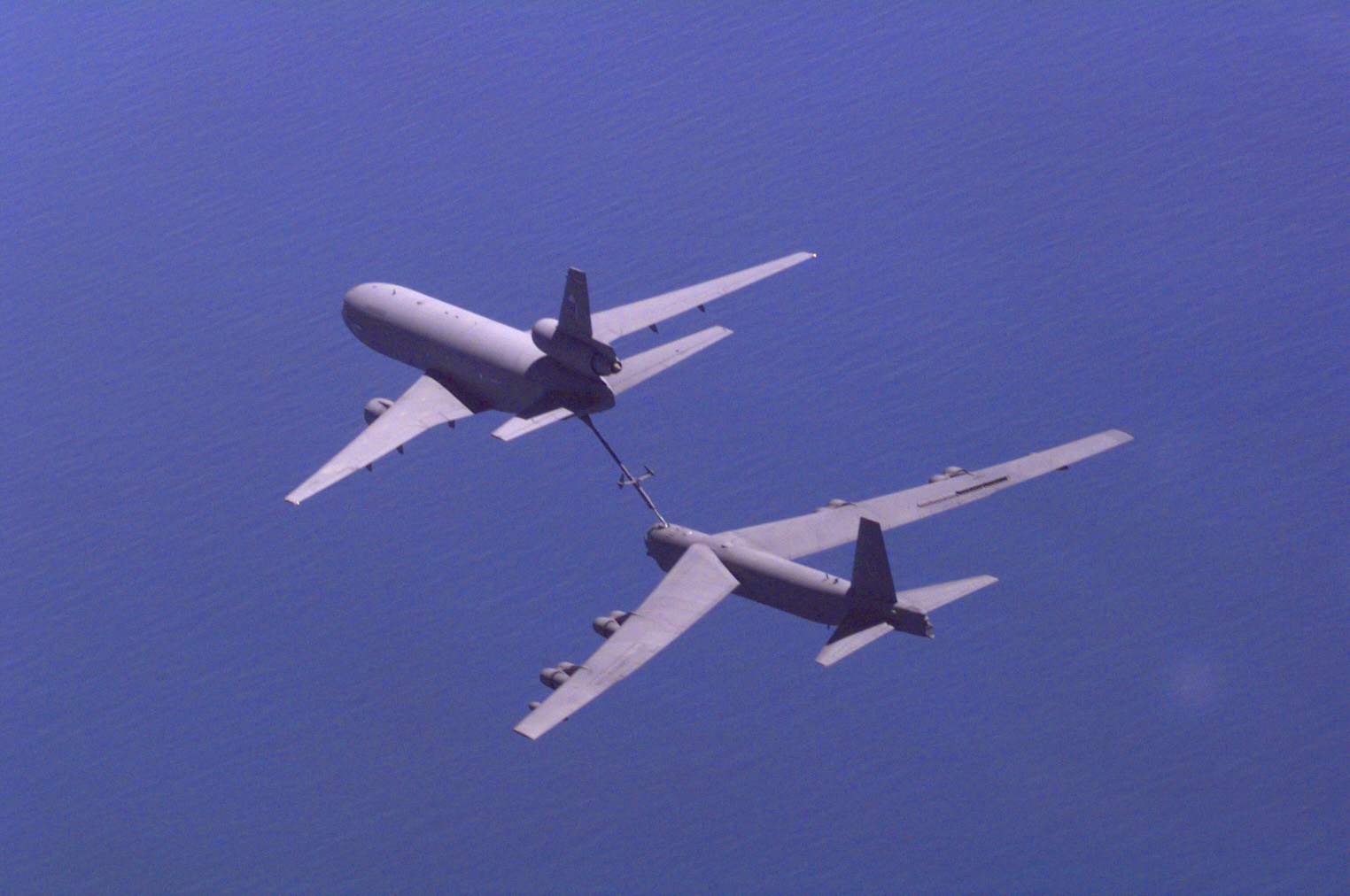

KC-10 Extender
The KC-10A Extender is an Air Mobility Command advanced tanker and cargo aircraft designed to provide increased global mobility for U.S. armed forces. Although the KC-l0A's primary mission is aerial refueling, it can combine the tasks of a tanker and cargo aircraft by refueling fighters and simultaneously carry the fighter support personnel and equipment on overseas deployments. The KC-10A can transport up to 75 people and nearly 170,000 pounds (76,560 kilograms) of cargo a distance of about 4,400 miles (7,040 kilometers) unrefueled.
The KC-10A's boom operator controls refueling operations through a digital fly-by-wire system. Sitting in the rear of the aircraft, the operator can see the receiver aircraft through a wide window. During boom refueling operations, fuel is transferred to the receiver at a maximum rate of 1,100 gallons (4,180 liters) per minute; the hose and drogue refueling maximum rate is 470 gallons (1,786 liters) per minute. The Automatic Load Alleviation System and Independent Disconnect System greatly enhances safety and facilitates air refueling. The KC-10A can be air-refueled by a KC-135 or another KC-10A to increase its delivery range.
The large cargo-loading door can accept most tactical air forces' fighter unit support equipment. Powered rollers and winches inside the cargo compartment permit moving heavy loads. The cargo compartment can accommodate loads ranging from 27 pallets to a mix of 17 pallets and 75 passengers. |

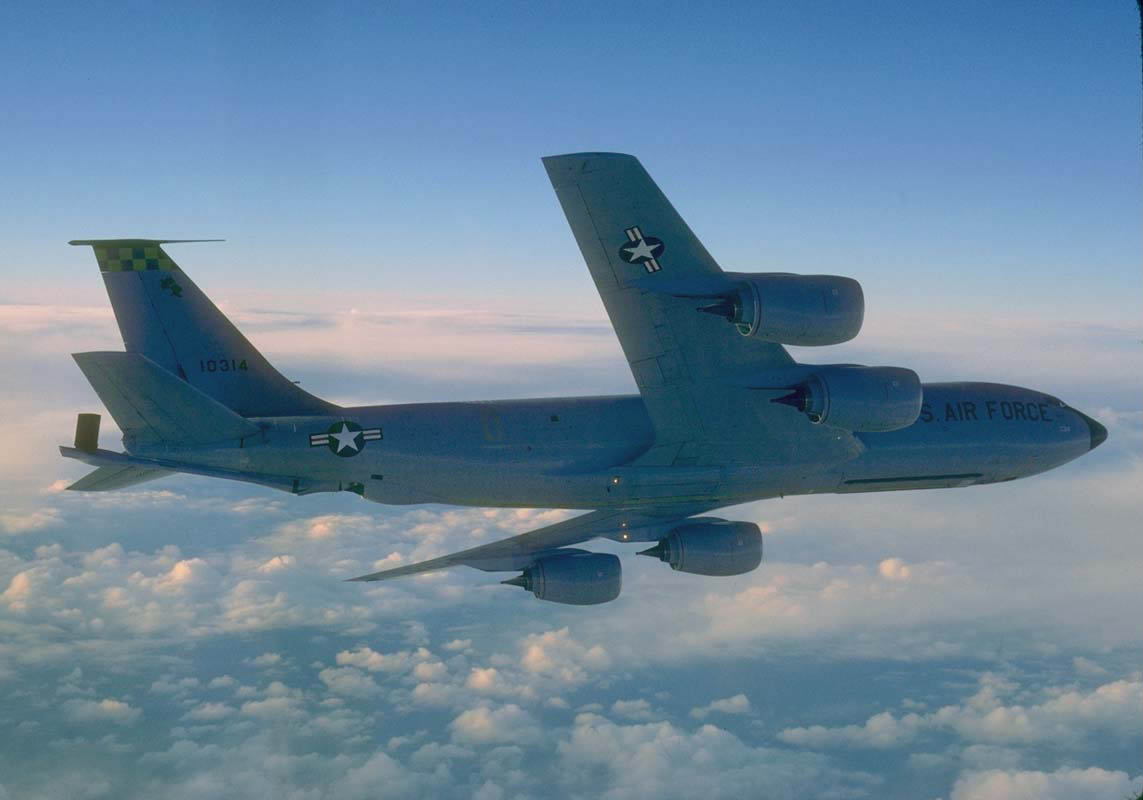

KC-135 Stratotanker
Primary Function: Aerial refueling
Prime Contractor: The Boeing Company
Power Plant: KC-135R/T, Four CFM-International CFM-56 turbofan engines; KC-135E, Four Pratt and Whitney TF-33-PW-102 turbofan engines
Thrust: KC-135R, 21,634 pounds each engine; KC-135E, 18,000 pounds each engine
Wingspan: 130 feet, 10 inches (39.88 meters)
Length: 136 feet, 3 inches (41.53 meters)
Height: 41 feet, 8 inches (12.7 meters)
Speed: 530 miles per hour at 30,000 feet (9,144 meters)
Ceiling: 50,000 feet (15,240 meters)
Range: 1,500 miles (2,419 kilometers) with 150,000 pounds (68,039 kilograms) of transfer fuel; ferry mission, up to 11,015 miles (17,766 kilometers)
Maximum Takeoff Weight: 322,500 pounds (146,285 kilograms)
Maximum Transfer Fuel Load: 200,000 pounds (90,719 kilograms)
Maximum Cargo Capability: 83,000 pounds (37,648 kilograms)
Crew: Four
Unit Cost: .2 million (FY96 constant dollars)
Date Deployed: August 1965
Inventory: Active duty, 373; ANG and Reserve, 268
|
|
|
|
KC-135 Stratotanker
The KC-135 Stratotanker's principal mission is air refueling. This asset greatly enhances the U. S. Air Force's capability to accomplish its mission of Global Engagement. It also provides aerial refueling support to U.S. Navy, U.S. Marine Corps and allied aircraft.

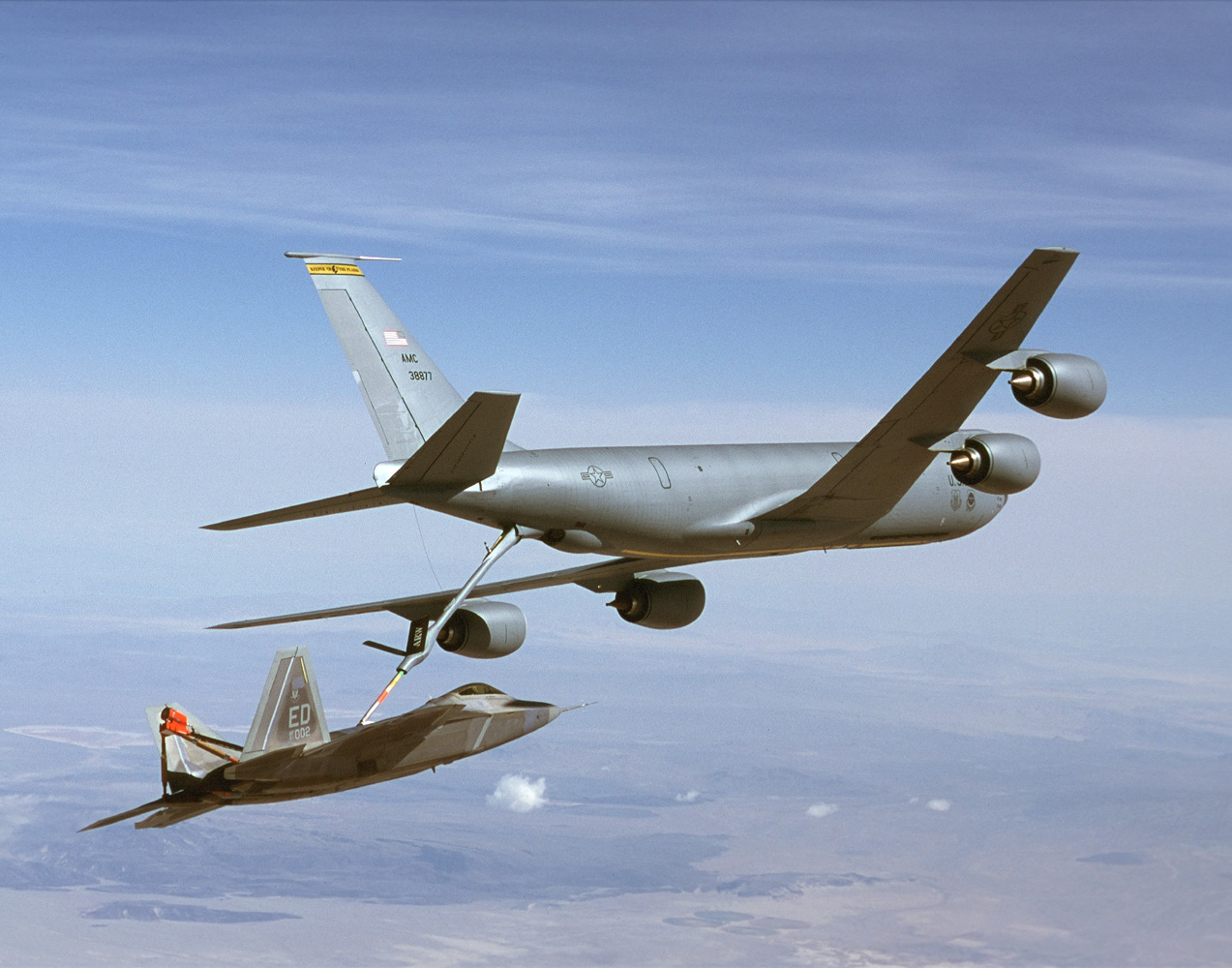

Four turbofans, mounted under 35-degree swept wings, power the KC-135 to takeoffs at gross weights up to 322,500 pounds (146,285 kilograms). Nearly all internal fuel can be pumped through the tanker's flying boom, the KC-135's primary fuel transfer method. A special shuttlecock-shaped drogue, attached to and trailed behind the flying boom, may be used to refuel aircraft fitted with probes. An operator stationed in the rear of the plane controls the boom.
A cargo deck above the refueling system can hold a mixed load of passengers and cargo. Depending on fuel storage configuration, the KC-135 can carry up to 83,000 pounds (37,648 kilograms) of cargo.
|
|
|
|
|
|
